Woodgas Ute - Intake

Click any picture to enlarge

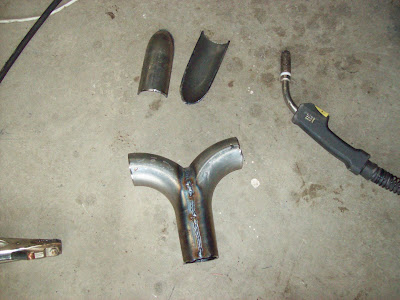

"Cut and shut" two and a half inch mandrel bent "U"

Cut 3 flanges from 5mm plate

Two Ford throttle bodies

LPG mixer ring on front throttle inlet

Air inlet behind headlight, woodgas inlet at rear of motor

Early GM V6 inlet tubes give reasonable clearance all around

Sliding link on woodgas throttle at left for cable to increase gas flow
