Sunday 28 December 2008

Lazy Sunday



Two old gas tanks, one fabricated tube


Gas exit nozzle

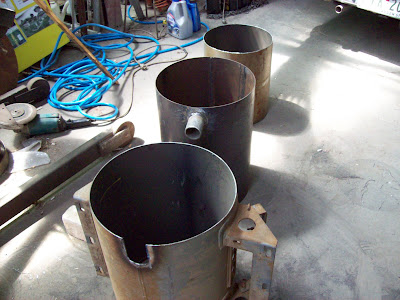

Ma, Pa and baby Dalek (sorry)
Notch for easy assembly, a welded collar will cover the gap


A hillbilly Faberge egg
Approx' 10mm gaps all around, closer to 15mm behind exit pipe


Mark and drill main nozzle holes


Support ring for grate and brick lining


Angle iron spacers, weld to ring only to allow for expansion


Threaded inserts, welded and ground flush on the outside





Stainless steel air inlet tube
